China medium voltage block Manufacturer, Factories

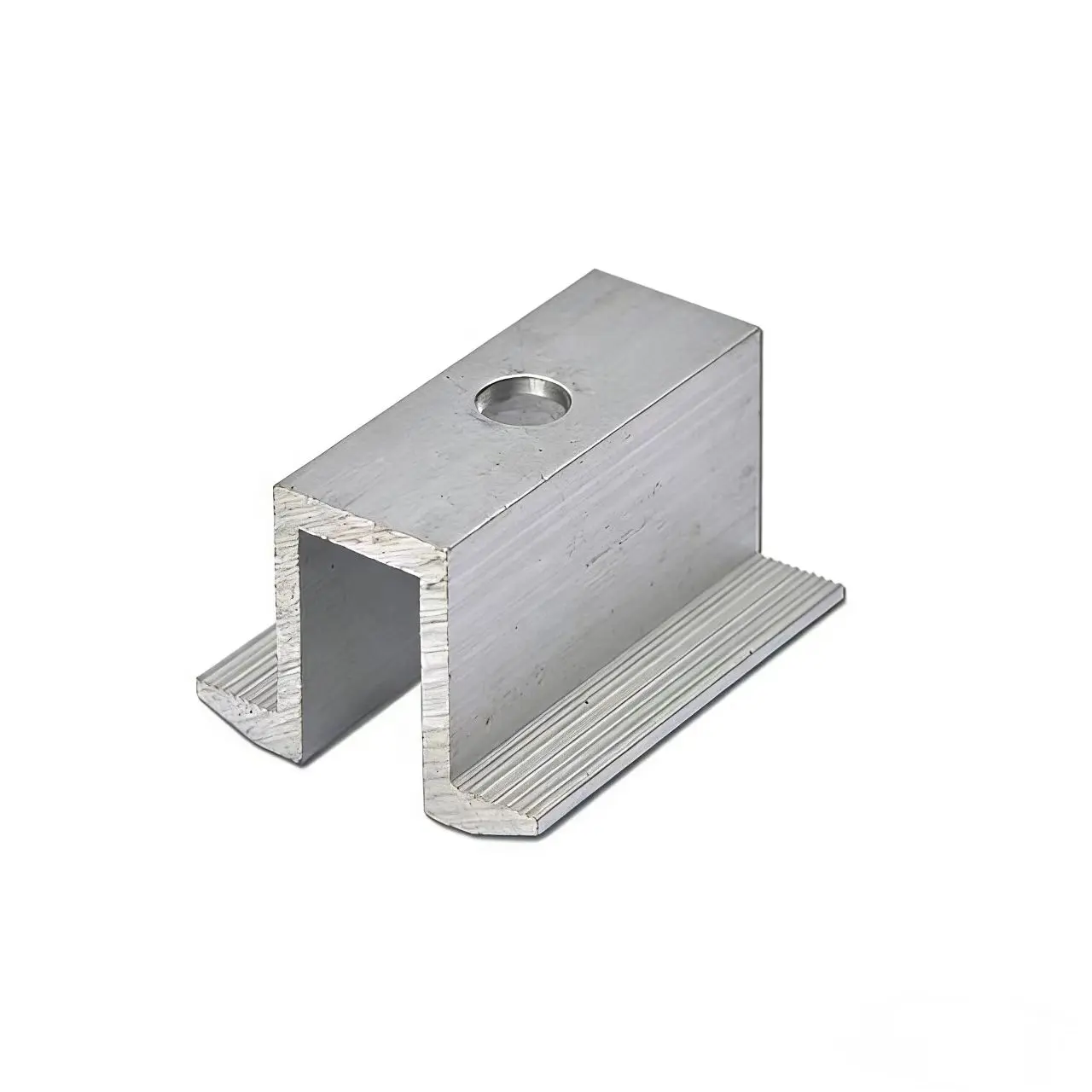

Here we introduce the medium pressure block to you. It is an aluminum alloy pressure block used in the photovoltaic support system to fix the middle position of adjacent photovoltaic modules, and is used in conjunction with edge pressure blocks. It is one of the core components of distributed photovoltaic power plants.
Fix the middle position of double glass components and single glass components.
Cooperate with edge pressure blocks to achieve continuous arrangement of components on the guide rail.
Used for flat roofs, color steel tile roofs, ground mounted photovoltaic power stations, and other scenarios.
Advantages and Differences
Advantages: Symmetrical structure, with compression plates on both sides. Symmetrical force distribution.
Difference: The medium voltage block is a symmetrical structure with pressure teeth on both sides, specially clamped between the adjacent frames of two photovoltaic modules, and fastened to the photovoltaic guide rail with bolts; And the edge pressing block only has single-sided pressing teeth, used to fix the two end edges of a row of components.
Frequently Asked Questions
1. What is the primary function of the middle voltage block?It is designed to fix the middle position of both double glass and single glass photovoltaic components, ensuring they are securely fastened to the guide rail.
2. Why is the symmetrical structure important?The symmetrical structure allows for pressure plates on both sides, ensuring a balanced force distribution across the photovoltaic modules, which enhances stability.
3. What is the difference between a middle block and an edge pressing block?Middle blocks feature double-sided pressure teeth to clamp between two adjacent modules, while edge blocks have single-sided teeth for fixing the end edges of a row.
4. Where can these mounting components be used?They are versatile and suitable for various scenarios, including flat roofs, color steel tile roofs, and ground-mounted photovoltaic power stations.
5. How are these components fastened to the guide rail?These components are fastened to the photovoltaic guide rail using bolts, providing a secure and reliable mechanical connection.
