Concrete Wedge Anchor Expansion Bolts: Your Ultimate Solution for Secure Installations

When it comes to robust fastening solutions, concrete wedge anchor expansion bolts stand out as the top choice for both professionals and DIY enthusiasts. Designed specifically for concrete applications, these versatile anchors ensure unparalleled stability and strength, making them ideal for various construction and renovation projects.

Why Choose Concrete Wedge Anchor Expansion Bolts?

Superior Holding Power Engineered with a unique wedge design, these anchors provide exceptional grip within concrete, preventing any movement or loosening over time. This ensures that your fixtures remain securely in place, whether you're installing shelves, heavy machinery, or safety barriers.

Easy Installation Concrete wedge anchors are straightforward to install. Simply drill a hole, insert the anchor, and tighten with a wrench. Their user-friendly design allows even novice users to achieve professional-grade results.

Versatile Applications Perfect for a wide range of applications, from securing outdoor furniture to anchoring structural supports in commercial buildings. No matter the project, these expansion bolts provide dependable performance in various environments.

Durable Construction Made from high-quality materials, these concrete anchors resist corrosion and wear, ensuring long-lasting durability. Choose from different coatings, such as zinc or stainless steel, to match specific environmental requirements.

Cost-Effective Solution With their reliable performance and longevity, concrete wedge anchor expansion bolts offer excellent value. Investing in these anchors minimizes the need for replacements and ongoing maintenance costs.

Tips for Choosing the Right Expansion Bolt

Size Matters: Select the appropriate length and diameter based on your specific application to ensure optimal holding power.

Weight Capacity: Consider the load your anchor will bear. Make sure to choose bolts that meet or exceed your weight requirements.

Environment Consideration: For outdoor projects or areas exposed to moisture, opt for stainless steel anchors to prevent rust and corrosion.

Conclusion

Concrete wedge anchor expansion bolts are an essential component for anyone looking to achieve secure, long-lasting installations. Whether you're working on a small DIY project or a large-scale construction job, these anchors provide the peace of mind you need. Invest in quality today for a more secure tomorrow!

For professional-grade concrete wedge anchor expansion bolts, browse our collection and find the perfect solution for your needs!

Send Inquiry

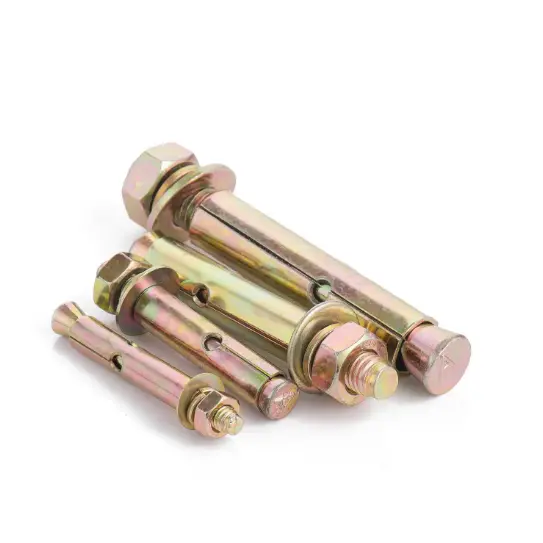

Product Description

Expansion bolts with a performance level of 4.6 refer to:

The nominal tensile strength of the expansion bolt material reaches 400 MPa level;

The yield strength ratio of the expansion bolt material is 0.6;

The nominal yield strength of the expansion bolt material reaches 400 × 0.6=240MPa level;

Drilling depth: It is best to be about 5 millimeters deeper than the length of the expansion pipe.

The requirements for the expansion bolt on the ground are of course the harder the better, which also depends on the force situation of the object you need to fix. The stress strength installed in concrete (C13-15) is five times higher than that in bricks.

After correctly installing an M6/8/10/12 expansion bolt in concrete, its ideal maximum static stress is 120/170/320/510 kilograms, respectively.

The expansion screw is composed of components such as a screw and an expansion tube. The tail of the screw is conical, and the inner diameter of the cone is larger than the inner diameter of the expansion tube. When the nut is tightened, the screw moves outward, and the axial movement of the thread causes the conical part to move, thereby forming a large positive pressure on the outer surface of the expansion tube. In addition, the angle of the cone is very small, which causes friction self-locking between the wall, the expansion tube, and the cone, thereby achieving a fixing effect;

The spring washer on the expansion screw is a standard part because its opening is staggered and elastic, so it is called a spring washer. The function of the spring washer is to use the sharp angle of the staggered opening to pierce into the nut and flat washer, preventing the nut from loosening;

A flat washer is also a standard component, and its function is to evenly distribute the pressure of the nut on the connected parts.

Scope of use of expansion screws

Expansion screws have the advantages of small drilling, high tensile force, and being exposed flat after use. If not used, they can be easily removed to keep the wall flat. They are widely used in various decoration occasions.

Frequently Asked Questions

Q1: What does a performance level of 4.6 indicate for expansion bolts?

A performance level of 4.6 means the nominal tensile strength of the material reaches 400 MPa, with a yield strength ratio of 0.6, resulting in a nominal yield strength of 240 MPa.

Q2: What is the recommended drilling depth for installing expansion bolts?

It is ideal to drill the hole about 5 millimeters deeper than the overall length of the expansion pipe to ensure adequate clearance and proper expansion.

Q3: How does the installation surface material affect the performance of expansion bolts?

Harder materials yield much better fixing results. For instance, the stress strength of an expansion bolt installed in concrete (C13-15) is five times higher than when installed in standard brick.

Q4: What are the maximum static stress values for standard M6 to M12 expansion bolts in concrete?

When correctly installed in concrete, the ideal maximum static stress values are approximately 120 kg for M6, 170 kg for M8, 320 kg for M10, and 510 kg for M12.

Q5: What functions do flat washers and spring washers serve in an expansion screw assembly?

The spring washer uses its staggered, elastic design to bite into the nut and flat washer to prevent loosening, while the flat washer ensures that the nut's pressure is distributed evenly across the surface of the connected part.

Q6: What are the main advantages and applications of expansion screws?

Expansion screws offer the benefits of minimal drilling, high tensile resistance, and a flat finish. They are widely used in a variety of decoration and construction scenarios as they can be easily removed to keep walls flat.
